Yuyao Zhenxing Flowmeter Instrument Factory

Water Ranges
0.1-8GPM
Injection molded, for clean water
Easy to read scale. Silkscreened with black ink for optimum contrast
Direct exposure to sunlight is not recommended
max working pressure 6bar
max temperature 60C
accuracy:FS /-5%
O-ring material：VITON

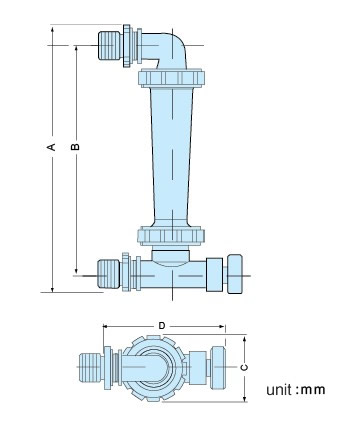

Model	A	B	C	D	E	Thread	P	Float
Z-5008T	185	152	42	98	ø21	1/2˝NPT	PVC	304SS
Z-5008CT	260	232	51	98	ø21	1/2˝NPT	PVC	304SS
Z-5015T	235	205	51	98	ø21	1/2˝NPT	PVC	304SS
Z-5015CT	270	240	51	98	ø21	1/2˝NPT	PVC	ABS

Model	Water		Male Thread	Accuracy	Weight （kg）
	GPM	LPM
Z-5008T	0.1~1	0.5~4	1/2"NPT	± 6%	0.2
	0.2~2	1~7
	0.5~5	1.8~18
	--	1~11
	--	2~20
Z-5008CT	0.1~1	0.5~4	1/2"NPT
	0.2~2	1~7
	0.5~5	1.8~18
	--	2~15
Z-5015T	0.25~2.5	1~10	1/2"NPT
	0.5~5	1.8~18
	0.8~8	3~30
Z-5015CT	10~100, 16~160 L/h		1/2"NPT
	25~250, 40~400 L/h
