Yuyao Zhenxing Flowmeter Instrument Factory

Water Ranges
0.004-180M3/H
Injection molded, for clean water
Easy to read scale. Silkscreened with black ink for optimum contrast
Direct exposure to sunlight is not recommended
max working pressure 6bar
max temperature 60C
accuracy:FS /-5%
O-ring material：VITON
ABS float
body SAN material(PC is optional)

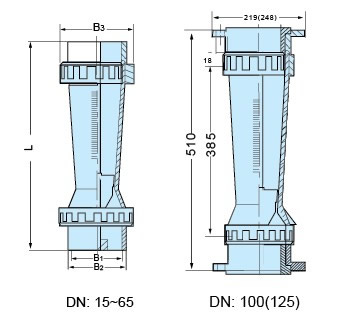

DN(mm)	（mm）
DN(mm)	L	B1	B2	B3
15	220	20	26	51
25	230	32	39	60
32	290	40	49	72
50	350	63	73	98
65	420	75	88	122
100	510	Hole distance 180mm 8-ø18
125	510	Hole distance 210mm 8-ø18
150	510	Hole distance 240mm 8-ø22

DN （mm）	Model	Measure Range m3/h	Glue	Male	Female	Elbow

15	LZS-15	4~40 L/h	ø20	1/2"NPT 3/4"NPT	G1/2"	G1/2"
		6~60 L/h
		10~100 L/h
		16~160 L/h
		25~250 L/h
		40~400 L/h
		60~600 L/h
		100~1000 L/h
25	LZS-25	0.1~1	ø32	3/4"NPT	G3/4" 3/4"NPT	G3/4"
		0.16~1.6
		0.25~2.5
32	LZS-32	0.4~4	ø40	1"NPT	G1" 1"NPT	G1"
		0.6~6
50	LZS-50	0.4~4	ø63	2"NPT	G2" 2"NPT	G2
		0.6~6
		1~10
		1.6~16
65	LZS-65	5~25	ø75		2½"NPT
		8~40
		12~60
100	LZS-100 flange	12~60	ø110	Hole distance 180mm 8-ø18
		18~90
		20~120
125	LZS-125 flange	12~60	ø110	Hole distance 210mm 8-ø18
		18~90
150	LZS-150 flange	20~120 18-90 20-120 25-150 30-180	ø110	Hole distance 240mm 8-ø22
