Yuyao Zhenxing Flowmeter Instrument Factory

Water Ranges
0.2-50LPM
Injection molded, for clean water
Easy to read scale. Silkscreened with black ink for optimum contrast
Direct exposure to sunlight is not recommended
max working pressure 6bar
max temperature 60C
accuracy:FS /-5%
O-ring material：VITON

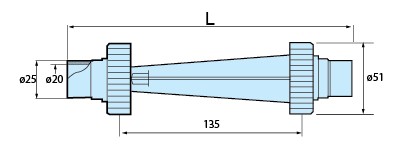

Model	Water （LPM）	Pipe connection	Thread
Z-5011	0.2~3	ø15 L:182mm	ZG 1/2”(F) L:183mm ZG 3/4”(M) L:211mm
Z-5012	0.4~4
Z-5013	0.6~6
Z-5014	1~10
Z-5015	1.6~16
Z-5016	2.5~25
Z-5017	5.0~50
