Yuyao Zhenxing Flowmeter Instrument Factory

One piece machined and polished acrylic meter body.
Acceptable for outdoor installations (direct sunlight okay)
Bulkhead nuts attach directly to inside panel.
Available adjustable valve (flow control) easy to assemble.
White back reflector for easy reading.

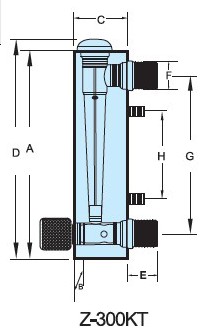

Dimensions

Model	（mm）
	A	B	C	D	E	F	G	H
T1,T2,T3	168	30	34	176	25	25	127	76


T4,T5, T6,T7	226	45	46	232	48	33	165	100

Measure range

Model	Measure Range Water ℃		Thread male	Accuracy	Working Pressure （Mpa）	TEMP. （℃）
	GPM	LPM
KT1	0.1~1	0.5~4	ZG1/2"	±6%	≤0.4	≤55
KT2	0.2~2	1~7
KT3	0.5~5	2~18
KT4	1~10	5~35	ZG3/4"
KT5	2~14	10~50
KT6	2~20	12~70	ZG1"
KT7	5~35	10~130
