Model： Acrylic flowmeters Z-300
Model： Acrylic flowmeters Z-300
Download

Video

360 °

One piece machined and polished acrylic meter body.
Acceptable for outdoor installations (direct sunlight okay)
Bulkhead nuts attach directly to inside panel.
Available adjustable valve (flow control) easy to assemble.
White back reflector for easy reading.

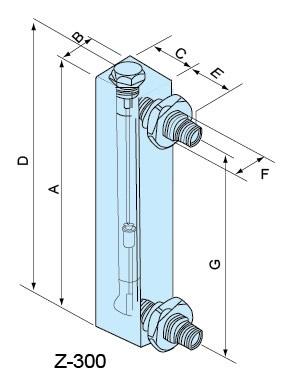

Dimensions


Model

size（mm）

A

B

C

D

E

F

G

Z-3000

206

34

40

215

31

20

165

Z-3001

Z-3002

Z-3003

220

41

45

233

47

33

165

Z-3004

Z-3005

240

44

50

253

47

33

175

Z-3006


Measure range

Model

Measure Range

Thread

Weight（kg）

Accurayc

Working Pressure
（Mpa）

TEMP.
（℃）

GPM

LPM

LPH

Z-3000

0.03~0.35

0.1~1.4

10~100

BSP1/2"

0.4

±5%

≤0.6

≤55

Z-3001

0.2~2

1~7

50~500

Z-3002

0.5~5

1.8~18

120~1200

Z-3003

2~10

5~40

300~2400

BSP3/4"

0.6

Z-3004

2~16

10~60

500~3500

Z-3005

4~24

20~100

600~6000

BSP1"

0.07

Z-3006

5~35

30~130

1400~7000
