360 °
One piece machined and polished acrylic meter body.
Acceptable for outdoor installations (direct sunlight okay)
Bulkhead nuts attach directly to inside panel.
Available adjustable valve (flow control) easy to assemble.
White back reflector for easy reading.

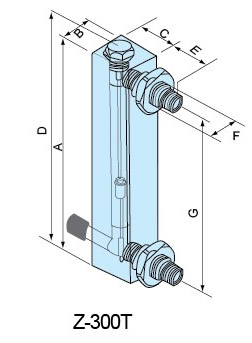

Dimensions
Model
mm
A
B
C
D
E
F
G
Z-3000T
206
34
40
215
31
20
165
Z-3001T
Z-3002T
Z-3003T
220
41
45
233
47
33
Z-3004T
Measure range
Measure Range
Thread(M/BSPT)
Accuracy
Working Pressure (Mpa)
TEMP. (℃）
GPM
LPM
0.03~0.35
0.1~1.4
1/2"
±6%
≤0.6
≤55
0.2~2
1~7
0.5~5
1.8~18
2~10
5~40
3/4"
2~16
10~60
