Products of LZB-( )WB series have four pipe sizes, includingφ3,φ4,φ6 andφ10. This type of flow meter can be used to test small range of gas and liquid. It is small-sized, widely used in various analysis meters, environmental protection equipment, medical treatment equipment and other experimental meters. WB type is equipped with regulating valve, W type without valve.

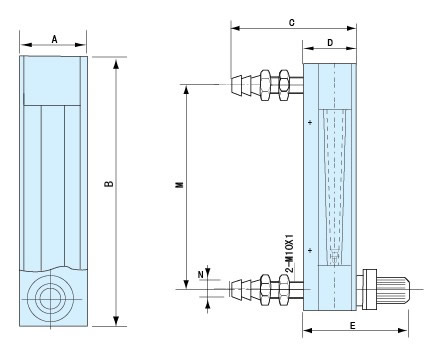

Model/Size/Mark	A	B	C	D	E	M	N Tubing Size
Model/Size/Mark	A	B	C	D	E	M	N Tubing Size
LZB-2WB	24	136	56	22	<31	116	ø8
LZB-3WB	28	136	56	27.5	<52	116	ø8
LZB-4WB	28	136	56	27.5	<52	116	ø8
LZB-6WB	28	136	56	29.5	<60	116	ø10
LZB-10WB	28	160	56	29.5	<60	140	ø10

Flow range

Model	Measure		Accuracy	Tube length			Fiexible Pipe
	Water	Air			Working pressure	Temp.
LZB-2WB	0.4~4ml/min	6~60mL/min	4 6	100	≤0.2MPa	0 ~ 60℃	ø6
	0.6~6ml/min	10~100mL/min
	1~10ml/min	16~160mL/min
	1.6~16ml/min	25~250mL/min
LZB-3WB	2.5~25ml/min 6~60ml/min 10~100ml/min	0.03~0.3L/min	4 6	100			ø8
		0.06~0.6L/min
		0.1~1L/min
		0.15~1.5L/min
LZB-4WB	16~160ml/min	0.3~3L/min	4 6	100			ø8
	25~250ml/min	0.6~6L/min
LZB-6WB	0.04~0.4L/min	0.7~7L/min	2.5 4	100			ø10
	0.06~0.6L/min	1~10L/min
	0.1~1L/min	1.5~15L/min
LZB-10WB	0.1~1L/min	3~30L/min	2.5 4	120			ø11
	0.16~1.6L/min	5~45L/min
