DK800 is used for measuring tiny flow. With nice shape, and light-weighted, easy to install and repair the
taper pipe and float can be changed without separating the whole machine into pieces. The flow scale is
clear and acute, which is widely used in the chemical, petroleum, medical, food, environmental protection
and scientific research departments, for measuring one phase non-pulsating fluid(liguid or gas)
Temperature Limit: 120100℃
Accuracy: ±2.5%
Working pressure limited: 1.0MPa

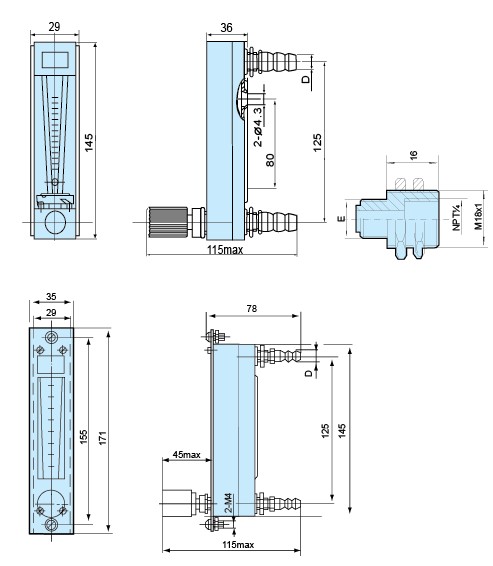

Model
D
E
Weight（KG）
DK800S-3
ø11.5
M10x1 G1/4˝
0.45
DK800S-4
DK800S-6
Flow range
DN(mm)
MeasureRnge(L/h)
Float Mererial
Water
Air
3
0.15~1.5
0.18~1.8
304SS
0.36~3.6
4
0.25~2.5
0.5~5
0.8~8
1.6~16
6~60
6
0.5~5 1.2~12 2~20 2.5~25 4~40 6~60 10~100 16~160 20~200
10~100
25~250
50~500
80~800
100~1000
180~1800
240~2400
300~3000
350~3500
430~4300
