Yuyao Zhenxing Flowmeter Instrument Factory

Water Ranges
0.5-100GPM
Injection molded, chemical resistant Polysulfone
Easy to read scale.
Direct exposure to sunlight is not recommended
max working pressure 10bar
max temperature 60C(100C is optional)
accuracy:FS /-6%
O-ring:Viton

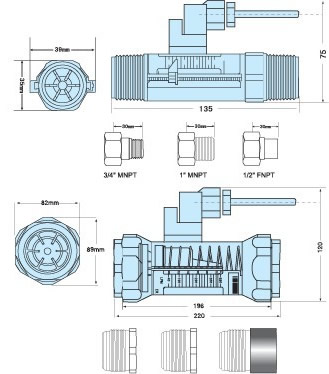

kinds of connection:female(NPT/BSP),male(NPT)

standard flow range

model	measure range				thread	weight (kg)
	water		air
	GPM	LPM	GPM	LPM
Z-6011	0.5~5	2~20	18~180	60~600	1/2" FNPT 3/4" MNPT	0.4
Z-6012	1~7	4~26	20~200	70~700
Z-6013	1~10	4~35	25~250	100~1000
Z-6014	1~16	5~60	35~350	150~1400
Z-6015	3~18	10~65	52~520	200~2000	3/4" FNPT or 1" MNPT	0.5
Z-6016	4~28	20~100	80~800	300~3000	3/4" FNPT or 1" MNPT	0.5

flow range (with alarm switch)

model	measure range				thread	weight (kg)
	water		air
	GPM	LPM	GPM	LPM
Z-6011A	0.5~7	2~25	18~180	60~600	1/2" FNPT 3/4" MNPT	0.4
Z-6012A	0.5~9	2~35	20~200	70~700
Z-6013A	1~13	3~50	25~250	100~1000
Z-6014A	3~16	10~60	35~350	150~1400
Z-6015A	4~22	15~80	52~520	200~2000	3/4" FNPT or 1" MNPT	0.5
Z-6016A	5~28	20~100	80~800	300~3000	3/4" FNPT or 1" MNPT	0.5
