Water Ranges
0.25-80 GPM
Injection molded, chemical resistant Polysulfone
Easy to read scale. Silkscreened with black ink for optimum contrast
Direct exposure to sunlight is not recommended
max working pressure 10bar
max temperature 60C(100C is optional)
accuracy:FS /-5%
O-ring:Viton(F46/PTFE is optional)
standard float PP(PTFE is optional)
4 kinds of connection:glue,female(NPT/BSP),male(NPT),elbow(BSP/NPT)

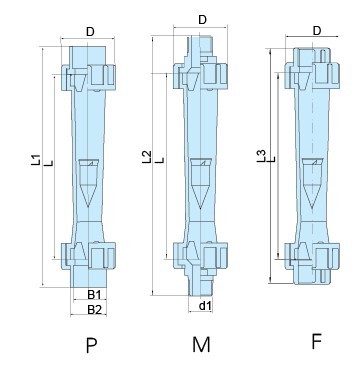

Model	L	D	Metric Union (P)			Male Thread（M）	Female Thread(F)	Weight （kg）
Model	L	D	L1	B1	B2	L2	L3
Z-5615	170	50	217	20	26	236	216	0.4
Z-5620	123	60.5	192	33.7	44.8	211	192	0.45
Z-5625	199	59	255	32	39	281	254	0.5
Z-5632	249	72	310	40	49	338	315	1
Z-5650	290	120	375	63	73	400	370	3
