The series of glass rotor flowmeters is an integrates product by cone-shaped glass tube, float, flanges.
The installation is easy and the flowmeter is adjustable, the flowmeter is used in ranges such as
semi-conductor chemicals etc.

Temperature Limit: PVC≤60℃ 304SS≤100℃
Accuracy: ±5%

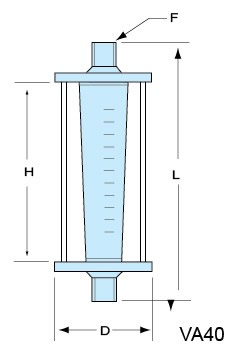

	15	20	25	32	40	50
L	250	300	310	320	330	360
H	150	200	200	200	200	200
D	100	110	120	145	155	170
F	G1/2″	G3/4″	G1″	G1¼″	G1½″	G2″

Flow range

DN(mm)	Measure		Working pressure (Mpa)
DN(mm)	Water(L/h)	Air (NL/min)	304SS	PVC
15	30-300	10-100	≤0.7	≤0.4
	60-600	20-200
	90-900	25-250
20	90-900	20-200
	120-1200	30-300
	180-1800	50-500
25	180-1800	50-500
	300-3000	100-1000
	480-4800	150-1500
32	480-4800	200-2000
	600-6000	250-2500
	720-7200	300-3000
40	1-10m³/h	18-180Nm³/h	≤0.5	≤0.3
	1.2-12m³/h	20-200Nm³/h
	1.5-15m³/h	25-250Nm³/h
50	1.2-12m³/h	20-200Nm³/h	≤0.3	≤0.25
	1.5-15m³/h	25-250Nm³/h
	1.8-18m³/h	30-300Nm³/h
65	1.8-18m³/h	25-250Nm³/h
	3-30m³/h	35-350Nm³/h
	4-40m³/h	40-400Nm³/h
80	4-40m³/h	40-400Nm³/h
	5-50m³/h	50-500Nm³/h
	6-60m³/h	60-600Nm³/h
100	6-60m³/h	60-600Nm³/h
	7-70m³/h	70-700Nm³/h
	10-100m³/h	90-900Nm³/h
