Yuyao Zhenxing Flowmeter Instrument Factory

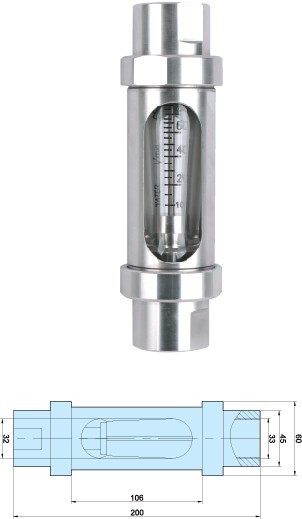

K-500G series glass rotameter consist of toper glass tube, float, top and bottom nuts, stainless steel body. It’s easy to install,
fittings can be optinal of glue(PVC) and clamp. The flowmeter is used in ranges such as semi-conductor chemicals, etc

Temperature Limit: 304SS≤100℃
Accuracy: ±2.5%
Working pressure limited: 0.6MPa
Alarm switch is optional

Model	Measuring Range		Thread (Female)	Weight(kg) 304
Model	water (ml/min)	air (NmL/min)	Thread (Female)	Weight(kg) 304
K-5011G	1~10	40~400	3/4˝ G	2
K-5012G	2~20	60~600
K-5013G	3~30	90~900
K-5014G	4~40	120~1200
K-5015G	5~50	150~1500	1"G
K-5016G	12~60	400~1800
K-5017G	20~100	600~3000
