Allrounder with integrated pressure and temperature compensation
Suitable for a wide range of media
Vortex flowmeters are suitable for a wide range of media. This is particularly true of the KIO OPTISWIRL:
It measures both conducting and non-conducting liquids as well as all industrial gases. It also measures saturated steam and superheated steam, compressed air and nitrogen, liquefied gas and flue gas, demineralized water and boiler feed water, solvents and heat transfer oil.
The even masters fluctuating pressures and temperatures thanks to integrated pressure and temperature compensation.
Integrated pressure and temperature compensation
Temperature compensation for saturated steam is a standard feature
All devices feature 2-wire technology
Excellent long-term stability thanks to sturdy construction
High measuring accuracy
Maintenance-free sensor
Non-wearing, fully-welded stainless steel construction with high resistance to corrosion, pressure and temperature
Intelligent Signal Processing (ISP) ensures maximum measurement reliability and stability
Instantly ready for operation (plug & play)
|

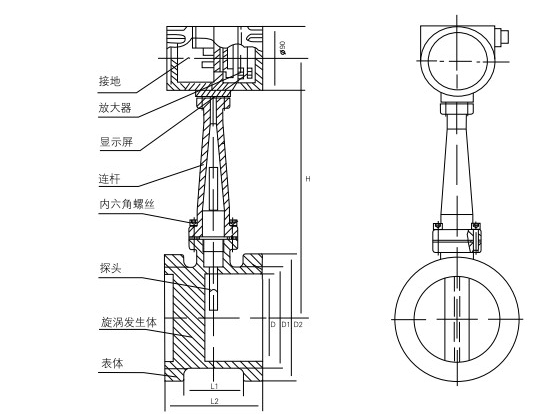

Installation Sizes UNIT:mm
|
|
|
D
|
D1
|
D2
|
L1
|
L2
|
H
|
|
LUGB -21-025
|
25
|
39
|
63
|
48
|
80
|
365
|
|
LUGB -21-032
|
32
|
46
|
70
|
48
|
80
|
368
|
|
LUGB -21-04
|
40
|
54
|
78
|
48
|
80
|
372
|
|
LUGB -21-05
|
50
|
64
|
88
|
48
|
80
|
377
|
|
LUGB -21-065
|
65
|
81
|
105
|
48
|
88
|
385
|
|
LUGB -21-08
|
80
|
96
|
120
|
56
|
96
|
392
|
|
LUGB -21-10
|
100
|
116
|
140
|
72
|
114
|
402
|
|
LUGB -21-12.5
|
125
|
141
|
165
|
90
|
132
|
415
|
|
LUGB -21-15
|
150
|
166
|
190
|
110
|
152
|
427
|
|
LUGB -21-20
|
200
|
218
|
244
|
140
|
188
|
452
|
|
LUGB -21-25
|
250
|
268
|
294
|
178
|
226
|
477
|
|
LUGB -21-30
|
300
|
318
|
344
|
216
|
264
|
502
|
Flow range
|
D N/mm
|
Normal flow range
|
Model DN/mm
|
measure flow range
|
|
Liquids m3/h
|
AIR m3/h
|
Liquids m3/h
|
Air m3/h
|
|
LUGB-21-25
|
1-12
|
8-60
|
LUGB -21-100
|
20-200
|
100-1000
|
|
LUGB-21-32
|
1.5-20
|
12-100
|
LUGB-21-125
|
36-360
|
150-1500
|
|
LUGB-21-40
|
2.5-30
|
18-180
|
LUGB -21-150
|
50-500
|
200-2200
|
|
LUGB-21-50
|
3-50
|
30-300
|
LUGB -21-200
|
100-1000
|
400-4000
|
|
LUGB-21-65
|
6-80
|
50-500
|
LUGB -21-250
|
150-1500
|
600-6000
|
|
LUGB-21-80
|
15-500
|
70-700
|
LUGB -21-300
|
200-2000
|
1000-10000
|
