Turbine flowmeters are used for the precise measurement of instantaneous flow rates and flow quantities of low-viscosity fluids. It can be widely used in the flields of Petrol ,chemical industry,metallurgy,scientific research fot
measuring or control .Several output and display options can be selecte
TYPE:
1 with 4-20mA output signal,24VDC
2 with pulse output signal,24VDC
medium:diesel,petrol,hydraulic oil,water,acid,alkali,milk,wine,etc(base on diameter)

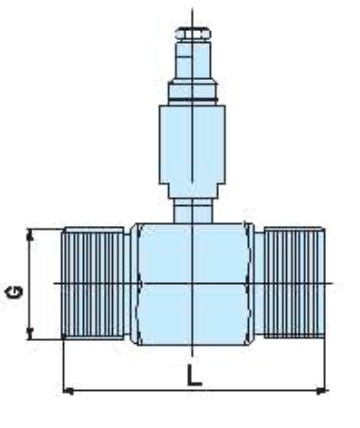

THREAD TYPE
|
Specitications（figure1）
|
|
|
|
|
|
DN(mm)
|
2,3,4
|
6~60
|
10.00
|
15.00
|
20.00
|
25.00
|
32.00
|
|
G
|
1/4
|
3/8
|
1/2
|
1
|
1
|
1¼"
|
1½"
|
|
Lmm
|
40
|
55
|
40
|
50.00
|
60.00
|
75.00
|
75.00
|
100.00
|
120.00
|
|
Weight
(kg)
|
0.5
|
0.7
|
0.5
|
0.6
|
0.65
|
1.0
|
1.2
|
1.7
|
2.2
|

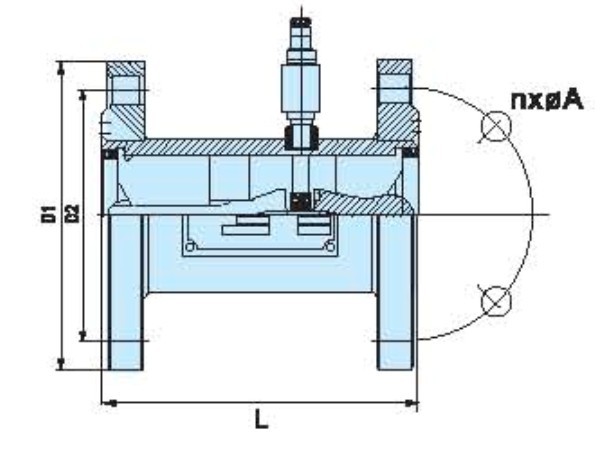

SPECIFICATIONS(FLANGE TYPE)
|
DN
|
D1
|
D2
|
nxøA
|
L
|
weights（kg）
|
|
10
|
90
|
60
|
4x14
|
60
|
1.9
|
|
15
|
95
|
65
|
4x14
|
75
|
2.0
|
|
20
|
105
|
75
|
4x14
|
75
|
2.9
|
|
25
|
115
|
85
|
4x14
|
100
|
3.7
|
|
32
|
140
|
100
|
4x18
|
120
|
5.0
|
|
40
|
150
|
110
|
4x18
|
140
|
7.0
|
|
50
|
165
|
125
|
4x18
|
150
|
9.0
|
|
65
|
185
|
145
|
4x18
|
180
|
11.0
|
|
80
|
200
|
160
|
8x18
|
200
|
14.0
|
|
100
|
220
|
180
|
8x18
|
220
|
21.0
|
|
150
|
285
|
240
|
8x22
|
300
|
36.0
|
|
200
|
340
|
295
|
12x22
|
360
|
57.0
|
